2.Materials Welded:

Carbon Steel
Stainless Steel
Nickel Alloy
Titanium
Copper

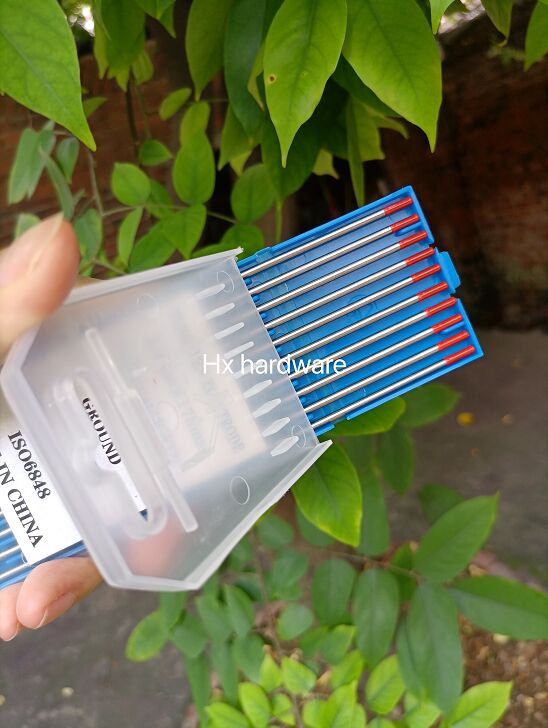

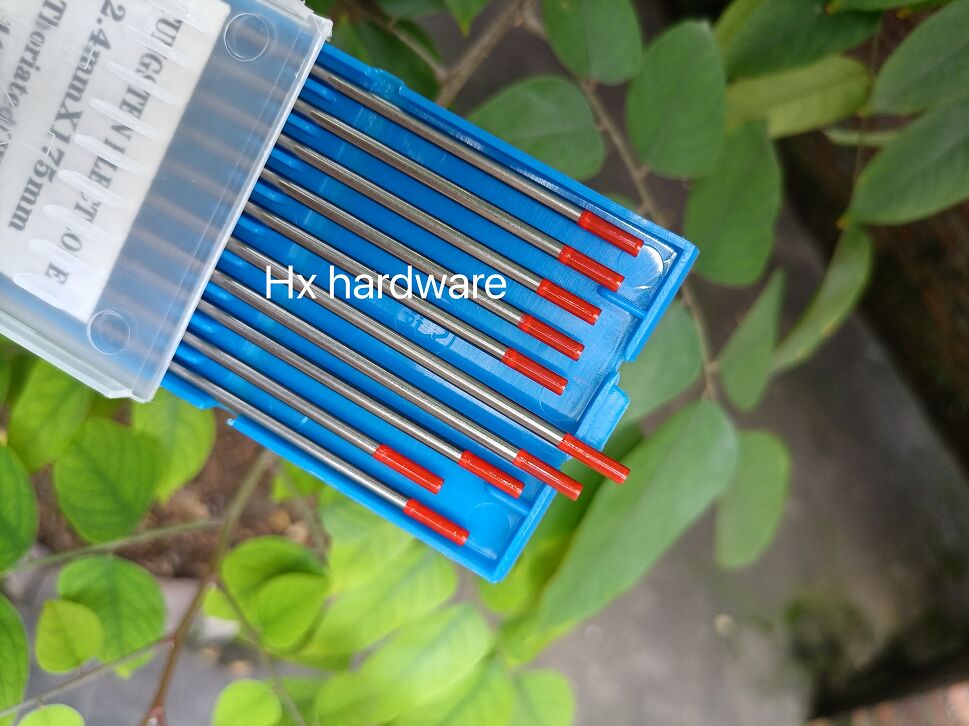

3.Thoriated Tungsten Electrode:

2% thoriated tungsten contains a nominal 2% or thorium oxide (ThO2) that is evenly dispersed throughout the entire length of the tungsten. The most common type of tungsten used today. Provides excellent resistance from weld pool contamination while at the same time offers the welder easier arc starting capabilities and a more stable arc. Generally used for DC electrode negative or straight polarity applications such as carbon and stainless steels, nickel alloys and titanium.

 Detail inforamtion.



Designation	Composition Dioxide	Oxide in%	Impurities Content %	Tungsten Content%	Color Mark
WL10	LA2O3	0.80~1.20	<0.2	Remainder	tungsten
WL15	LA2O3	1.30~1.70	<0.2	Remainder	tungsten
WL20	LA2O3	1.80~2.20	<0.2	Remainder	tungsten
WT20	ThO2	1.70~2.20	<0.2	Remainder	tungsten
WC20	CeO2	1.80~2.20	<0.2	Remainder	tungsten
WZr3	ZrO2	0.20~0.40	<0.2	Remainder	tungsten
WZr8	ZrO2	0.70~0.90	<0.2	Remainder	tungsten
WP	——	——	<0.2	99.8	tungsten
WY20	Y2O3	1.80~2.20%	<0.2	Remainder	tungsten
