Product Name：

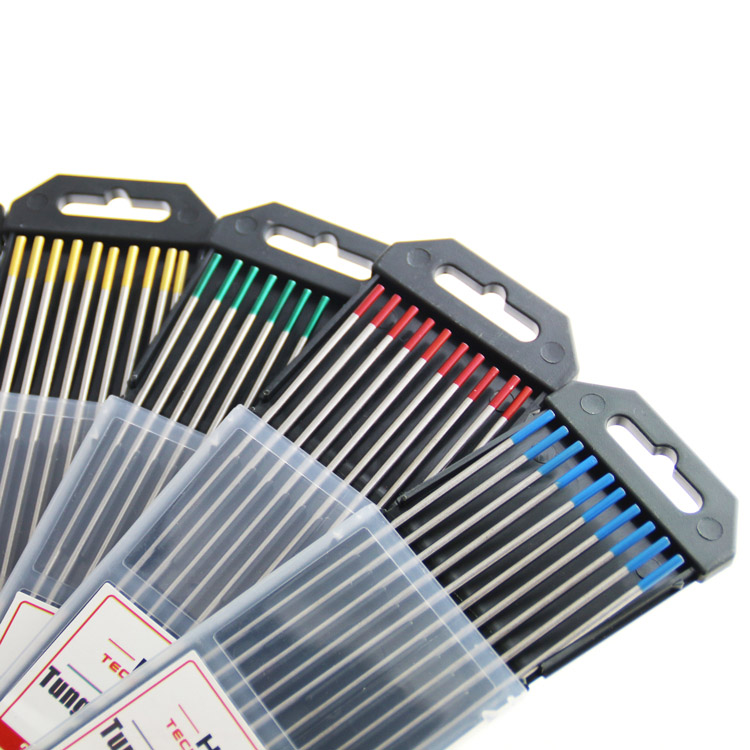

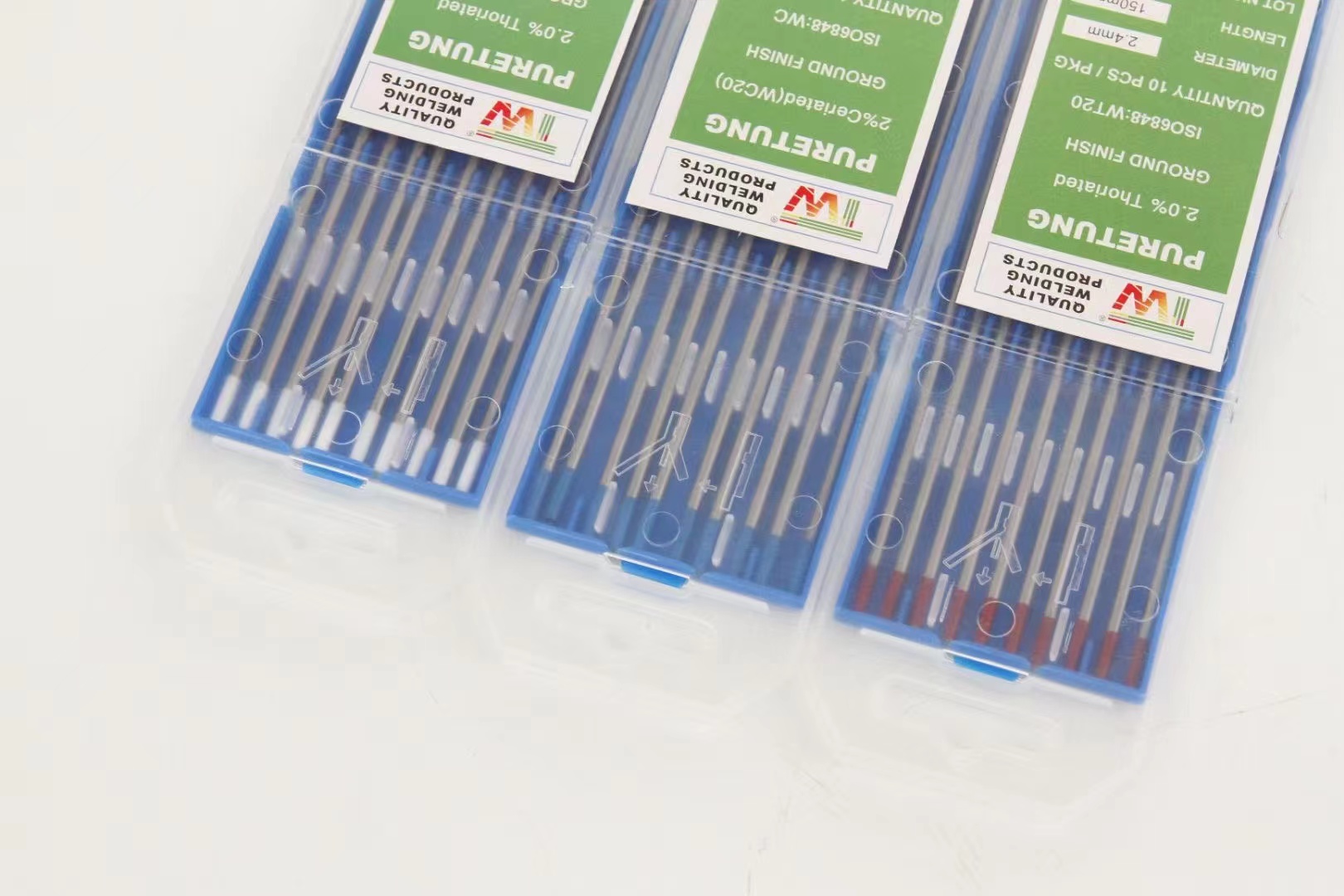

0.8%Zirconiated tungsten tig electrodes GTAW tip for tig welding electrodes

Product Model：

WZR8,WL20, WT20

Click Times：

1258Times

Information：

Lanthanated tungsten electrode attracts close attention and becomes popular in international welding area for its unique welding performance; it is easy to use under AC or DC conditions; lanthanated electrodes operate at a slightly different arc voltage than thoriated or ceriated electrodes; developed around the same time as ceriated tungsten to help combat the increasing awareness of the radioactivity of thoriated tungsten; generally used to weld carbon and stainless steels, nickel alloys and titanium.

Diameter:1.6/2.0/2.4/3.0/3.2/4.0/4.8mm

Length:150/175mm

Detail information.

Designation	Composition Dioxide	Oxide in%	Impurities Content %	Tungsten Content%	Color Mark
WL10	LA2O3	0.80~1.20	<0.2	Remainder	tungsten
WL15	LA2O3	1.30~1.70	<0.2	Remainder	tungsten
WL20	LA2O3	1.80~2.20	<0.2	Remainder	tungsten
WT20	ThO2	1.70~2.20	<0.2	Remainder	tungsten
WC20	CeO2	1.80~2.20	<0.2	Remainder	tungsten
WZr3	ZrO2	0.20~0.40	<0.2	Remainder	tungsten
WZr8	ZrO2	0.70~0.90	<0.2	Remainder	tungsten
WP	——	——	<0.2	99.8	tungsten
WY20	Y2O3	1.80~2.20%	<0.2	Remainder	tungsten
