Zirconiated Tungsten Electrode  WHITE
   ¡¾Previous¡¿ ¡¾Next¡¿
Product Name£º Zirconiated Tungsten Electrode WHITE
Product Model£º WZR8-0.8%Zr
Click Times£º 1275Times
Information£º

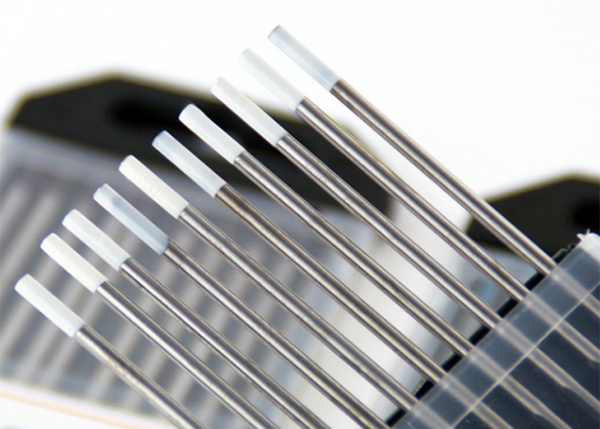

Zirconiated tungsten electrode is also called the tungsten zirconiated electrode.Zirconiated tungsten electrode is tungsten electrodes manufactured with zirconiated oxide. This tungsten electrode has good performance under AC, especially under high electric current. However it is not commended for direct current. When welding, the tip of zirconiated tungsten electrode will remain as round shape, so that the tungsten spitting will be decreased.
The surface condition of zirconiated tungsten electrode is polish grounded. It is bright and tipped with the brown and white color for its different composition of zirconiated in tungsten zirconiated electrode.

Diameter:1.6/2.0/2.4/3.0/3.2/4.0/4.8mm
Length:150/175mm

Detail information.

Designation

Composition Dioxide

Oxide in%

Impurities Content %

Tungsten

Content%

Color Mark

WL10

LA2O3

0.80~1.20

<0.2

Remainder

tungsten

WL15

LA2O3

1.30~1.70

<0.2

Remainder

tungsten

WL20

LA2O3

1.80~2.20

<0.2

Remainder

tungsten

WT20

ThO2

1.70~2.20

<0.2

Remainder

tungsten

WC20

CeO2

1.80~2.20

<0.2

Remainder

tungsten

WZr3

ZrO2

0.20~0.40

<0.2

Remainder

tungsten

WZr8

ZrO2

0.70~0.90

<0.2

Remainder

tungsten

WP

¡ª¡ª

¡ª¡ª

<0.2

99.8

tungsten

WY20

Y2O3

1.80~2.20%

<0.2

Remainder

tungsten
